Track Bike Tourer

March 27, 2019 by jon | Comments Off on Track Bike Tourer

I was lucky enough to have the opportunity to go over to the North American Handmade Bike Show this year. The decision was made quite late but I wanted to make something nice to ride over there on. I really like the look of old steel track bikes so wanted make something reminiscent of those and then make a few concessions to see how well it can do the touring thing. Touring accessories included raise handlebars, 5 speed Sturmey Archer hub, front rack, dynamo hub lighting and a bunch of bike packing bags. Overall it rode really well, was perfectly comfortable and didn’t get too battered by the journey.



Raf’s track bike

January 21, 2019 by jon | Comments Off on Raf’s track bike

Having got heavily into riding fixed geared bikes over the last year my son wanted the chance to have a go on the track. After a thoroughly good initial outing with Sutton cycling club at Lee Valley we got down to design his own bike. We used Columbus Max and Spirit tubing, some specially made aero tubing for the seat tube and a whopping tapered head tube. Topped off with some Cinelli components and carbon wheels.





Gravel Bike

December 16, 2018 by jon | Comments Off on Gravel Bike

This took some time to get to fruition but finished at last and speedily built up by brother. Columbus Zona tubing with enough room for 2.1s and compact chainset. We used thinner curved rear seatstays for a bit more long distance comfort.



Tomo Fixies @RedHookCrit Milano

October 17, 2018 by jon | Comments Off on Tomo Fixies @RedHookCrit Milano

Due to a number of unforeseen circumstances we were pretty late pulling the Tomobikes together for Milan. We ended up having two ready but only completed in the week of the race; a fully bespoke Columbus steel fixie and a custom designed titanium one. The selection of Columbus tubes were specifically to make it stiff and give good power transfer with a selection of Max, Spirit and Zona tubing where as the Ti one was a bit more traditional with only round tubes and built for a bit more long distance comfort. It was interesting the feel the difference in the rides. They obviously have different components and I think those Spin On These wheels help but the steel bike certainly had some get up and go. We’ll be doing some back to back tests including a carbon frame and component swapping in the near future.

Red Hook Crit Milan Fixie

September 15, 2018 by jon | Comments Off on Red Hook Crit Milan Fixie

Running a bit late but trying to get this bike together to take to Milan Red Hook Crit. High bottom bracket, Columbus Max, Spirit and Zona tubing. Bentley Components dropouts. The first full frame build on my new Bicycle Academy jig. Seems to be working out alright. Definitely quicker to setup than my home made version. Can’t wait to ride this thing.



Last minute tall bike

April 22, 2018 by jon | Comments Off on Last minute tall bike

When prepping for our tall bike ride to Bristol, having built the later two out of full cromo donor frames I realised I might be slightly under gunned with my old Raleigh and Viner mix.  The excuse of someone expressing an interest in buying it was all I needed to convince me to build another. It also gave me the opportunity to test out building some long forks in preparation for another up coming project. So on the Saturday before the Bespoked show the hammer (angle grinder) dropped and my old On-One Inbred frame went to a higher place. Just about finished in time as the last parts only arrived on the Thursday before we left on the Friday. We did manage to give it a 400 yard test ride Thursday night just as it got dark and packed it for the first time as we left on Friday and it worked out great. I will probably fit a stabiliser bar to the front fork which I ran out of time to complete before the off. Will probably reduce the load on the fork crown as there’s quite a moment on those forks and help once I get the front disc mount sorted too.



Eske’s balance bike

April 3, 2018 by jon

Having met Eske for the first time last year when she was just one, a secret plan was hatched to build her a balance bike for her second birthday. It was a surprise for her dad, Sjoerd also. We’re looking for him to apply some of his Velowland magic to the finish too.

Marin Bear Mountain Tall Bike

October 22, 2017 by jon | Comments Off on Marin Bear Mountain Tall Bike

In preparation for a #TallBikeTour next year we are expanding the flock. We created this double Marin framed mountain tall bike. With half Bear Valley and half Pine Mountain it feels pretty light with all that double butted cromoly loveliness. Managed to add in the beer bottle opener, just in case:-)



Dahon Minivelo project

October 1, 2017 by jon | Comments Off on Dahon Minivelo project

IMG_5232A chap contacted me for a possible interesting project based on a Dahon De Bike. Make a non folding lightweight mini velo with similarities to the Dahon. Knowing not too much about them I laid my hands on this little beauty for a test ride. Really good nick for a bike of that age. I’d have to say it’s somewhat flexible(!) and pretty intricate to fold. Even has a jocky wheel come out when it’s folded. Hope the project comes off as it looks pretty good fun and i’m sure would ride a lot better than the original.



Tall bike touring

September 22, 2017 by jon | Comments Off on Tall bike touring

IMG_5309For a planned tallbike camping trip I wanted to add some luggage capacity so added front and rear stainless racks and some additions to the rear frame to add some extra stuff is needed and add to the patchwork paint job.



IMG_5091







Sunday tall bike

May 24, 2017 by jon | Comments Off on Sunday tall bike

I ended up with a free Sunday afternoon and having watched the TED talk about tall bike bobby I couldn’t resist turning some of the scrap in the shed into something more fun. They seemed to get a mixed reception but it’s got two wheels, looks like a pile of fun and actually rides pretty well.

IMG_4760 IMG_4812

Tomoland Truss fork

April 29, 2017 by jon | Comments Off on Tomoland Truss fork

I was lucky enough to spend some time with Sjoerd from Velowland in the Netherlands recently and we doodled a type of truss fork. Started experimenting with a trial build of those last week. Hopefully get them finished this weekend.

IMG_4675IMG_4674



Yellow Snow Bike

March 19, 2017 by jon | Comments Off on Yellow Snow Bike

After having a go on a friends fat bike I was gagging to build one. I’d been collecting the bits for some time and finally got round to finishing it. Most seem to have pretty slack angles. The one I rode seemed like it did to so I decided to go for 70.5 degree head angle. It’s certainly doesn’t seem slow to turn. Can’t wait to get it off road.

IMG_4488 IMG_4496

Alfine 11 Cyclocross bike

March 7, 2017 by jon | Comments Off on Alfine 11 Cyclocross bike

A friend of mine wanted a new road bike. After talking to him about how and where he was going to ride it we decided on a cross bike. Alfine 11 hub, Columbus Zona tubing, 853 forks, custom Brooks saddle, Chris King headset, Avid SL road discs and the rather cool Microshift STi levers. We put a split in the frame using the Paragon dropouts to run a belt drive eventually. He kindly let me do the frame design and choose the colour!

IMG_4326 IMG_4327 IMG_4328 IMG_4330 IMG_4344

Skinny tubed Fat Bike (winter bike 3)

December 26, 2016 by jon | Comments Off on Skinny tubed Fat Bike (winter bike 3)

img_4197I’ve been using the Christmas break to progress my Fat Bike. I had been collecting the parts for a while but was convinced to build it by having a go on a friends. Really want to finish before it snows or maybe before the sun comes out and go to the beach. Mix of Columbus and Deda tubing with Ritchey dropouts. 4 inch tyres fit ok with some room to spare. Will have to wait and see if 4.8s will squeeze in.



Winter bike

December 14, 2016 by jon | Comments Off on Winter bike

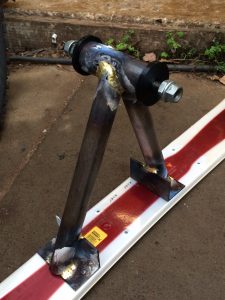

Something for the winter! A friend of mine sent me a link to one of these so it seemed to good an opportunity to miss. Bit research and Bob’s your snowman’s uncle – snow bike / ski bike. A few bits to make to complete it and fingers crossed for snow.

img_4118 img_4115

Copper singlespeed frame

October 25, 2016 by jon | Comments Off on Copper singlespeed frame

I wanted to try copper coating a frame so combined it with some tube bending on my latest singlespeed frame. I couldn’t decide whether to leave it shiny or let it age and oxidise. Even I thought it looked pretty cool shiny so have tried 2k lacquering it to see how that sticks and lasts.

img_3928

Ben’s Uni Tomo Bike

August 7, 2016 by jon | Comments Off on Ben’s Uni Tomo Bike

The slightly long awaited birth of my eldest’s bike for Uni. Finished a while ago but never posted. We went away from the fixie idea having seen how lumpy Newcastle and the surrounding countryside is. Hopefully this will make the commute a little easier and enjoyable. Just about enough clearance for 2 inch tyres if desired.

Bens1

Bens3 Bens2

Bens7 And taking pride of place in the student digs kitchen.

Lefty prototype

July 4, 2016 by jon | Comments Off on Lefty prototype

IMG_3015When I was at Spin London last year I showed Sjoerd from Vellowland a doodle of an idea for a fork I had. Always been fascinated by the Cannodale Lefty fork for it quirkiness. He liked it so having found a front wheel I eventually got round to knocking this up.

Now I need to finish it up and do the frame to match.

Bamboo bike

June 13, 2016 by jon | Comments Off on Bamboo bike

IMG_3506

I finally got round to finishing the build of my Bamboo framed bike. The weather was looking up so thought it was about time. Of course the forecast is now wazzing down all week. I decided to go 8 speed for ease and, as someone kindly put it, traffic light colour scheme. We’ve got a Bamboo ride out planned in July so must give it a try as soon as the weather clears.

Mixte Balance Bike

June 6, 2016 by jon | Comments Off on Mixte Balance Bike

I had the great opportunity to build a balance bike for the grand daughter of a friend of mine. She chose the colour to match the new Tomo Bikes kit (or because it was a pretty colour!). Got some adjustable dropouts which with a bit of filing could make the angle needed for the chain and seat stays. What is a chain stay on a balance bike called? I wanted to go for a sort mixte look as it was for a young lady! Happy riding Amelia.

IMG_3484  IMG_3495  IMG_3491

Baby Tomo bike

May 5, 2016 by jon | Comments Off on Baby Tomo bike

IMG_3400

Parts for Jenny’s balance bike build have started arriving. Frame parts coming soon. Will be fun to make and start early introduction to bespoke bikes:-)

Steam punk bicycle

May 5, 2016 by jon | Comments Off on Steam punk bicycle

New project underway to build a steam punk themed bike. Lots of brass and detailed parts still to make. Nice skinny wishbone seats stays.

Brass stem cap with fixing for copper tubing. Not for the weight conscious but looks cool.

IMG_3262 IMG_3355

Bamboobee bike frame

October 18, 2015 by jon | Comments Off on Bamboobee bike frame

Having had a night with a few like minded friends I got round to building my bamboo frame up today. The Bamboobee frame comes as a kit with the box making the jig. All worked out ok with the need for a few adjustments of some dodgy joints. I decided to use some black pigment to colour the hemp used in the kit. It did make it look extra messy! Just needs 48 hours to set but looking forward to getting it out of the jig. Can’t wait to see how it rides.

IMG_2675_2  IMG_2764_s

29er Bikepacker rack

September 30, 2015 by jon | Comments Off on 29er Bikepacker rack

I wanted a small rack for carrying tent or sleeping bag on the front forks of my 29er. Knocked this up out of stainless to go on my new 29er bikepacker.

IMG_2622_small

Sliding dropout 29er

September 30, 2015 by jon | Comments Off on Sliding dropout 29er

I wanted to create a 29er that could run biggish tyres, single speed or geared. This can easily take up to 2.5 tyres with as short a rear end as I could squeeze in to reduce overall length. The forks are modified Surlys to take a Salsa Anything cage and a front luggage rack. Just about ready to go to paint – just need to decide on the colour!

566 762



Folding bike prototype

September 30, 2015 by jon

I finally finished my prototype folder. A fairly simple design, really to test the folding mechanism and the geometry. The first version requires the front wheel to be removed to fold it, mainly because it was easier to do it that way. The BB in the rear triangle means there’s no chain issues when folding. 20 inch wheels means it rolls a bit better than my Brommy. I need to put an extra spacer in the frame joint to raise the read a little and have changed the seatpost to one with less layback and suitable amount of seat adjustment. The cable routing seems to work ok with the folding action so far. The next version should enable the front wheel to say in when folding. On the first trip to London found this cool lit bridge with 406 which is coincidentally the tyre size on the bike.

IMG_2631 IMG_2776_s IMG_2780_s

Prototype folding bike

June 15, 2015 by jon | Comments Off on Prototype folding bike

I love my Brompton but wanted something I could ride a little further and faster in comfort. I wanted slightly larger wheels and full size frame so came up with this. Nearly ready for a first test.

Tomo Folder 1

May 21, 2015
by jon
Comments Off on DIY Bamboo Frames

DIY Bamboo Frames

And now for something completely different. When browsing Kickstarter one day, we came across a really neat looking Bamboo frame idea. Self build Bamboo frames with the box it’s sent in becoming the frame jig. I always fancied building one … Continue reading

Custom stainless pannier rack

March 1, 2015 by jon | Comments Off on Custom stainless pannier rack

Lisy needed a rack for her Mixte so it was a chance to make a stainless one. Got a new Ridgid tube bender, some 10mm tubing and 4mm plate and bobs your uncle. I’ve tried using cheaper tube benders before but this made the job much easier. Solid handles, with flat sides to easily lock in the vice. Angle marker made it much easier to get the angles close to that desired.

IMG_1312_3 IMG_1311_3



IMG_1199

Ben’s Uni Hybrid Bike

January 5, 2015 by jon

After a long time in the planning Ben’s Uni Bike finally emerges from cover and now taking pride of place in the student kitchen.

After looking at the terrain in and around Newcastle the idea of a fixie was binned in exchange for some gears and town proof tyre size. Just about enough room to run 29er tyres if needed (with a different fork). Hopefully this will make his commute to Uni easier and more enjoyable (and leave more time for work and play).

Bens1



Bens3

Bens2
Bens6
